| Total insert force: |
 90N |
| Total withdrawal force: |
27 80N |
| IndividualSeparate Force: |
 0.85N |
| Contact Resistance: |
0.02 |
| Insulation Resistance: |
10 M |
| Dielectric Strength: |
|

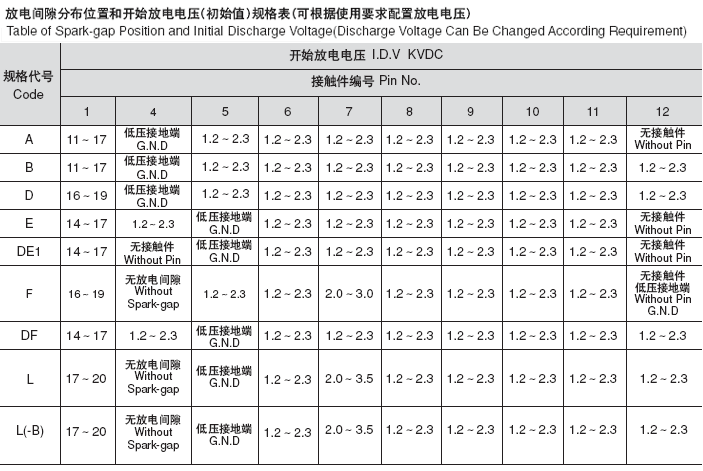

| a.Between No.1 pin and adjacent pins(with key bass): |
20KVdc |
| b.Between pins without spark-gap and adjacent pins(except ground pin): |
3KVdc |
| c.Between other adjacent pins(except ground pin): |
1.2KVdc |
| Suitable for Focus pole with cable inserted style only. |
|
| a.Cable wire inserting force |
10N |
| b.Cable wire withdrawal force |
40N |
| Flammability |
UL94V-0 |
